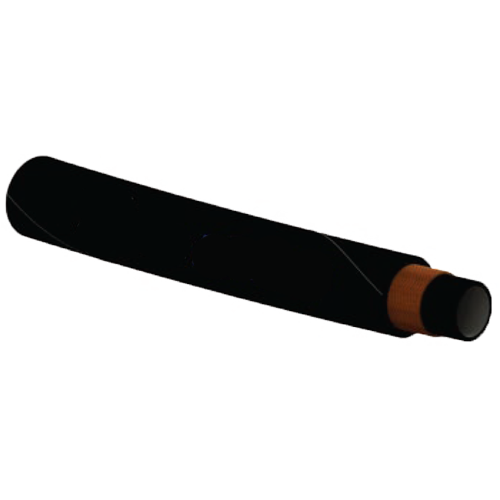

DIN EN 854 1TE / SAE 100R6

INNER TUBE : seamless oil resistant synthetic rubber
REINFORCEMENT : 2 high resistance synthetic fiber braid
OUTER TUBE : black wrapped, oil, weather and abrasion resistant synthetic rubber
SAFETY FACTOR : 4:1
TEMPERATURE RANGE : 40ºC (-40ºF) +100ºC (+212ºF); Max. temperature recommended for water base hydraulic fluids: +70ºC (+158ºF); Max. temperature recommended for air: +50ºC (+122ºF)
COUPLINGS : Balflex® 2-piece fittings serie 23 with 20 serie ferrules
APPLICATION : petroleum base hydraulic fluids
COVER : U.S. MSHA APPROVED
NOTES : Sizes -14 (DN 22) 7/8” and -16 (DN 25) 1” not included in the standards
